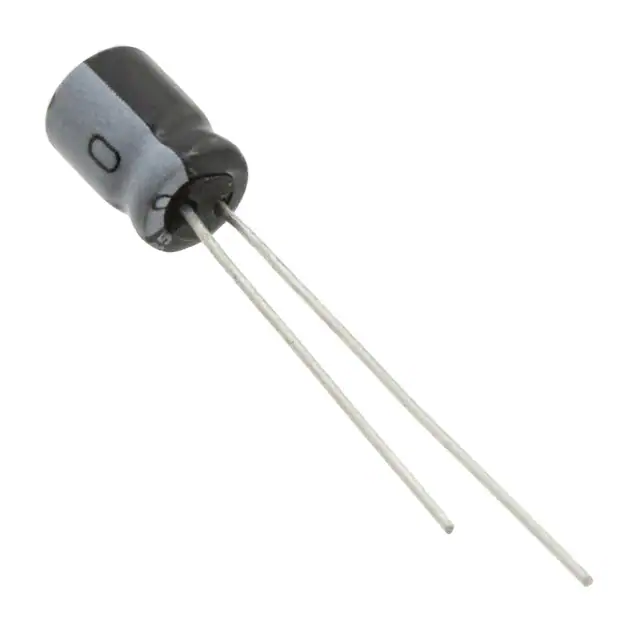

| Part Number | USR0G101MDD1TE | USR0G101MDD1TP | USR0J101MDD1TE |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 100 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 4 V | 4 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz | 65 mA @ 120 Hz | 78 mA @ 120 Hz |
| Ripple Current @ High Frequency | 97.5 mA @ 10 kHz | 97.5 mA @ 10 kHz | 117 mA @ 10 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
