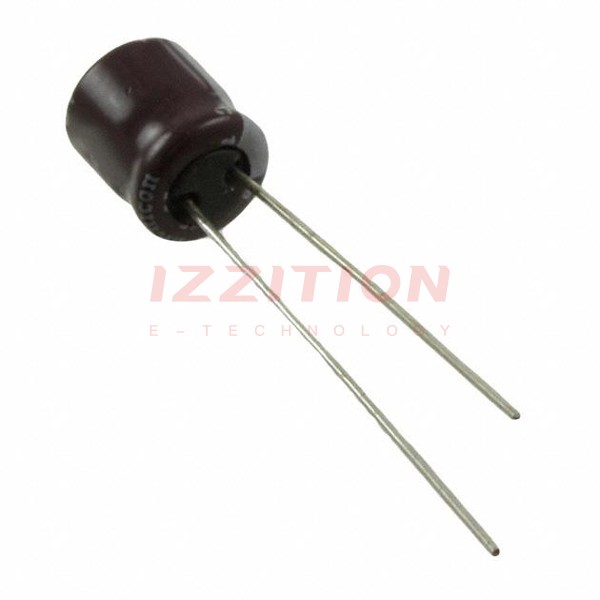

Nichicon-USF0J680MDD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	68 µF
Tolerance:	±20%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	80 mA @ 120 Hz
Ripple Current @ High Frequency:	160 mA @ 100 kHz
Impedance:	800 mOhms
Lead Spacing:	0.098" (2.50mm)
Size / Dimension:	0.248" Dia (6.30mm)
Height - Seated (Max):	0.315" (8.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon USF0J680MDD
