Please send RFQ , we will respond immediately.

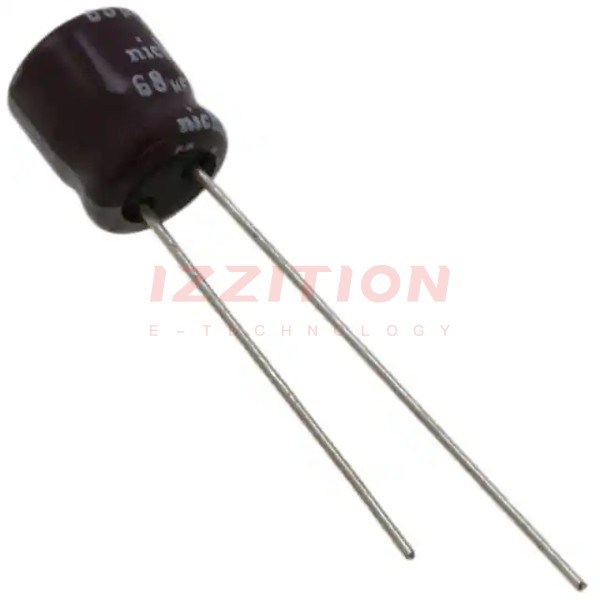

| Part Number | USF0J151MDD1TD | USF0J101MDD1TD | USF0J151MDD1TA |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Active | Active |
| Capacitance | 150 µF | 100 µF | 150 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 100 mA @ 120 Hz | 80 mA @ 120 Hz | 100 mA @ 120 Hz |
| Ripple Current @ High Frequency | 200 mA @ 100 kHz | 160 mA @ 100 kHz | 200 mA @ 100 kHz |
| Impedance | 500 mOhms | 800 mOhms | 500 mOhms |
| Lead Spacing | 0.138" (3.50mm) | 0.098" (2.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
