Please send RFQ , we will respond immediately.

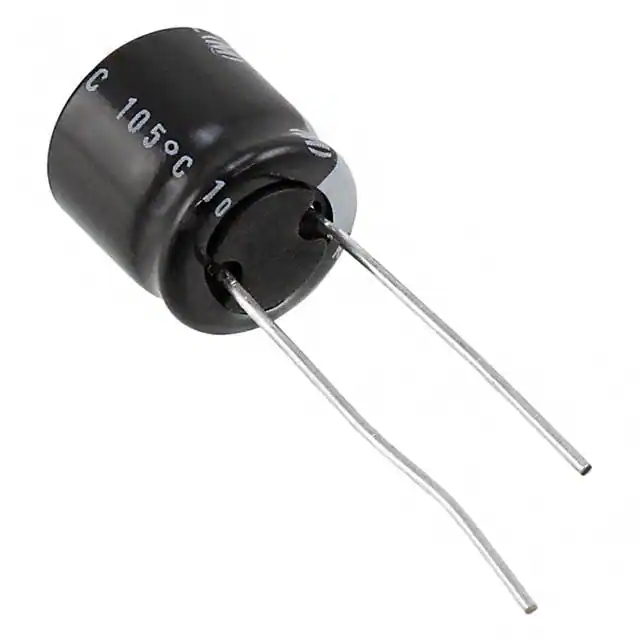

| Part Number | URZ1H101MPD1TD | URZ1V101MPD1TD | URZ1J101MPD1TD |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 100 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz | 155 mA @ 120 Hz | 215 mA @ 120 Hz |
| Ripple Current @ High Frequency | 255 mA @ 10 kHz | 232.5 mA @ 10 kHz | 322.5 mA @ 10 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
