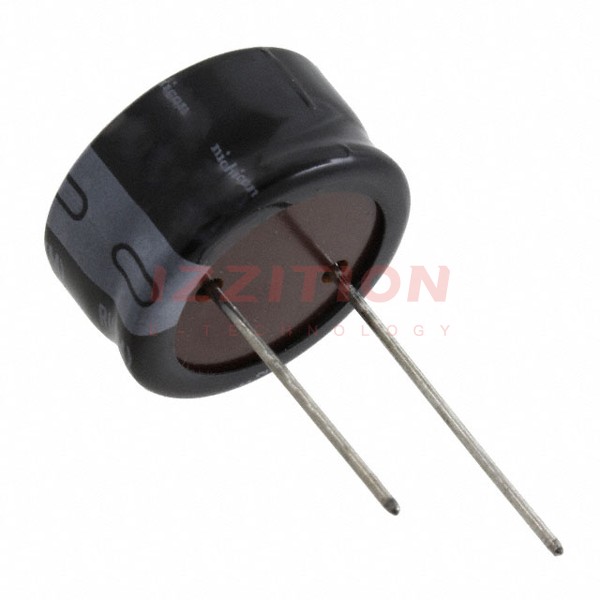

| Part Number | URU2V470MRD | URU2E470MRD | URU2F470MRD |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 47 µF | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 350 V | 250 V | 315 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | - | - | - |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz | 280 mA @ 120 Hz | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 448 mA @ 10 kHz | 448 mA @ 10 kHz | 448 mA @ 10 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.492" (12.50mm) | 0.394" (10.00mm) | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) | 0.787" Dia (20.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) | 0.571" (14.50mm) | 0.571" (14.50mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
