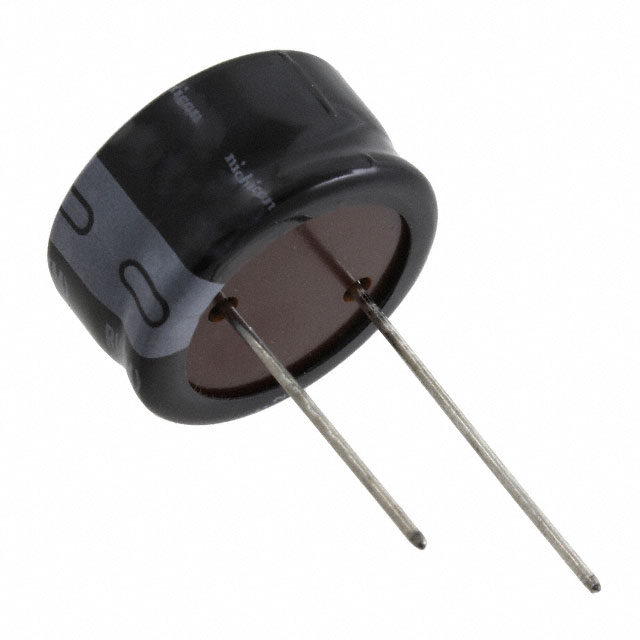

Nichicon-URU1H102MRD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	1000 µF
Tolerance:	±20%
Voltage - Rated:	50 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	-
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	930 mA @ 120 Hz
Ripple Current @ High Frequency:	1.0695 A @ 10 kHz
Impedance:	-
Lead Spacing:	0.492" (12.50mm)
Size / Dimension:	0.984" Dia (25.00mm)
Height - Seated (Max):	0.571" (14.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon URU1H102MRD
