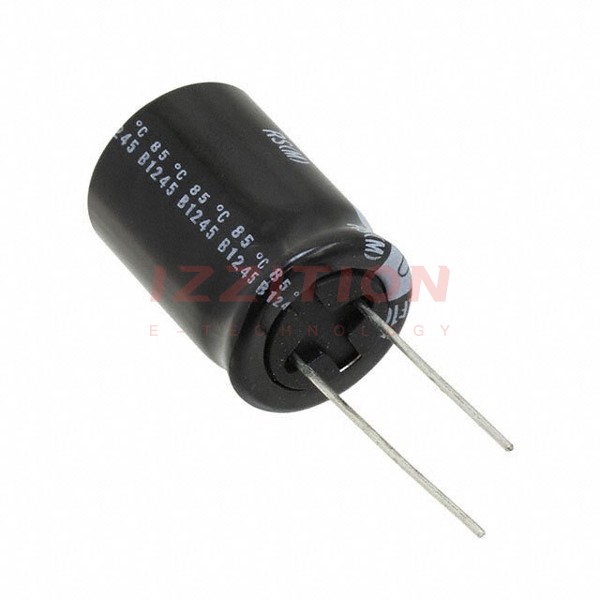

| Part Number | URS2D101MHD | URS2E101MHD | URS2D151MHD | URS2A101MHD | URS2C101MHD |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 100 µF | 100 µF | 150 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 200 V | 250 V | 200 V | 100 V | 160 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 590 mA @ 120 Hz | 590 mA @ 120 Hz | 710 mA @ 120 Hz | 370 mA @ 120 Hz | 590 mA @ 120 Hz |
| Ripple Current @ High Frequency | 944 mA @ 10 kHz | 944 mA @ 10 kHz | 1.136 A @ 10 kHz | 555 mA @ 10 kHz | 944 mA @ 10 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) | 1.043" (26.50mm) | 1.043" (26.50mm) | 0.650" (16.50mm) | 0.846" (21.50mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
