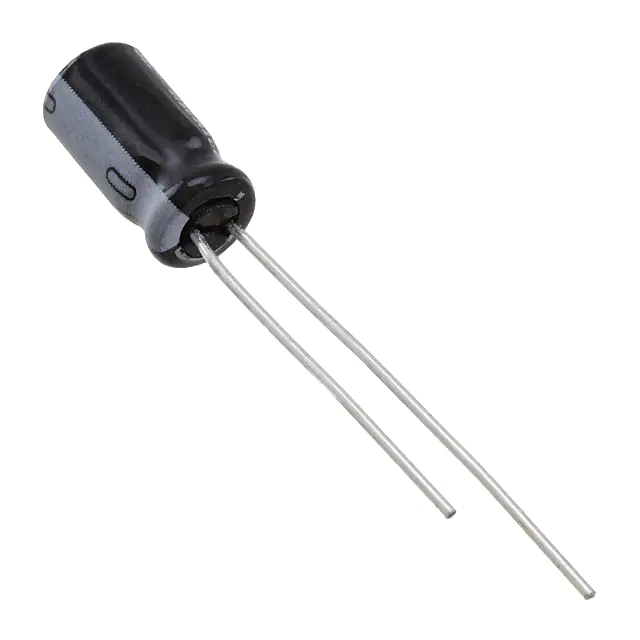

| Part Number | URS1C330MDD1TD | URS1E330MDD1TD | URS1H330MDD1TD | URS1A330MDD1TD | URS1C330MDD1TA |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 33 µF | 33 µF | 33 µF | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 25 V | 50 V | 10 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz | 95 mA @ 120 Hz | 120 mA @ 120 Hz | 75 mA @ 120 Hz | 85 mA @ 120 Hz |
| Ripple Current @ High Frequency | 170 mA @ 10 kHz | 190 mA @ 10 kHz | 240 mA @ 10 kHz | 150 mA @ 10 kHz | 70 mA @ 10 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.248" Dia (6.30mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
