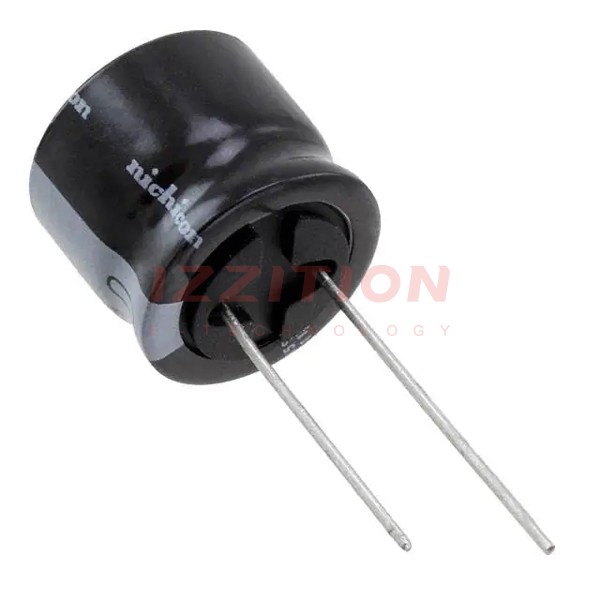

Nichicon-URS0J682MHD1TN - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	6800 µF
Tolerance:	±20%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.66 A @ 120 Hz
Ripple Current @ High Frequency:	1.909 A @ 10 kHz
Impedance:	-
Lead Spacing:	0.295" (7.50mm)
Size / Dimension:	0.709" Dia (18.00mm)
Height - Seated (Max):	0.650" (16.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon URS0J682MHD1TN
