Nichicon-UPZW6470MHD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	47 µF
Tolerance:	±20%
Voltage - Rated:	420 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-25°C ~ 105°C
Polarization:	-
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	360 mA @ 120 Hz
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	1.476" (37.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

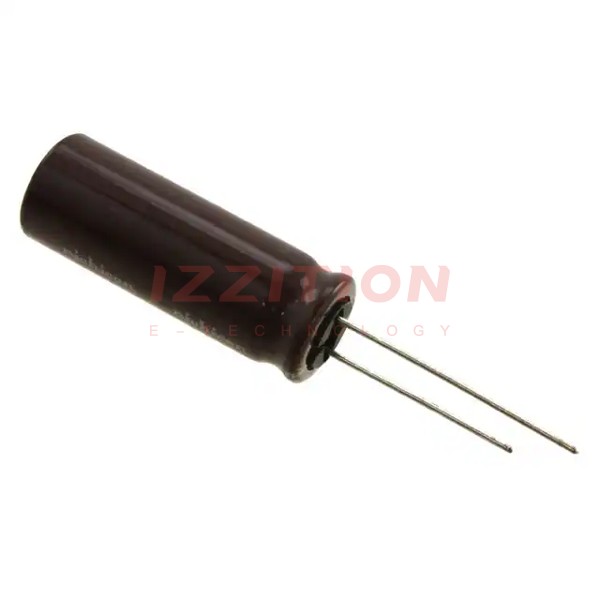

Nichicon UPZW6470MHD
