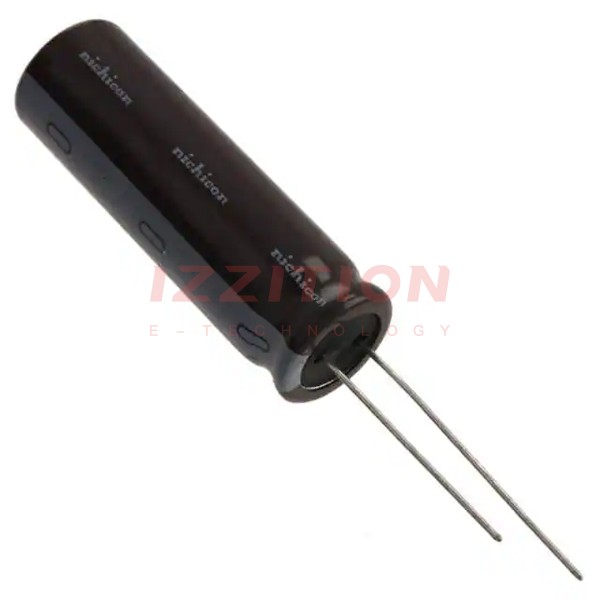

| Part Number | UPZ2G680MHD | UPZ2W680MHD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 68 µF | 68 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 400 V | 450 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | - | - |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 480 mA @ 120 Hz | 490 mA @ 120 Hz |
| Ripple Current @ High Frequency | 720 mA @ 10 kHz | 735 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) | 1.476" (37.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
