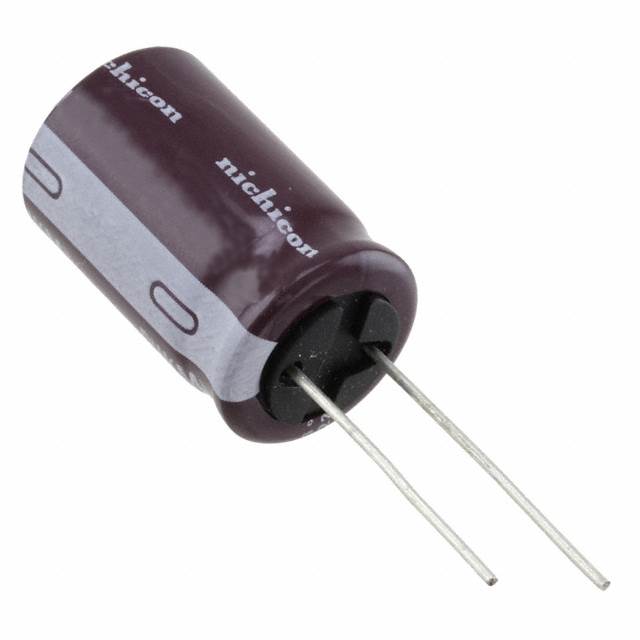

| Part Number | UPW2A221MHD1TN | UPW2A221MHD6TN |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 578.5 mA @ 120 Hz | 552.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 890 mA @ 100 kHz | 850 mA @ 100 kHz |
| Impedance | 100 mOhms | 110 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 0.866" (22.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
