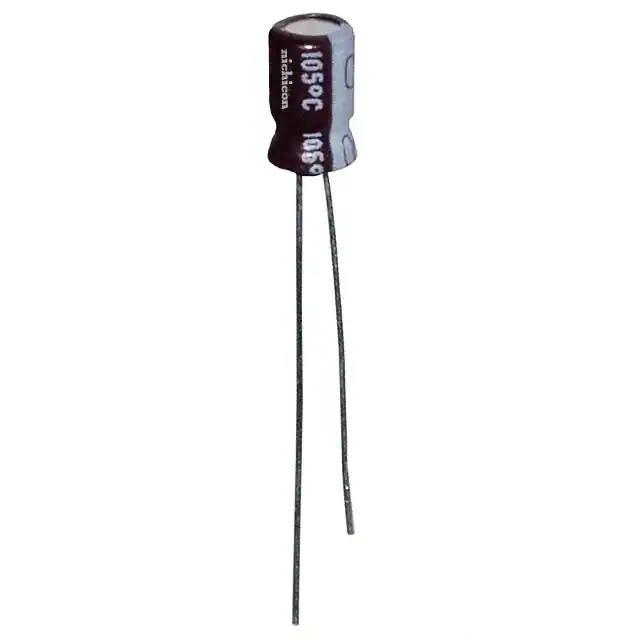

| Part Number | UPW1V6R8MDH | UPW1V6R8MDD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete |
| Capacitance | 6.8 µF | 6.8 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 19.5 mA @ 120 Hz | 19.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 65 mA @ 100 kHz | 65 mA @ 100 kHz |
| Impedance | 2 Ohms | 2 Ohms |
| Lead Spacing | 0.059" (1.50mm) | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.276" (7.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
