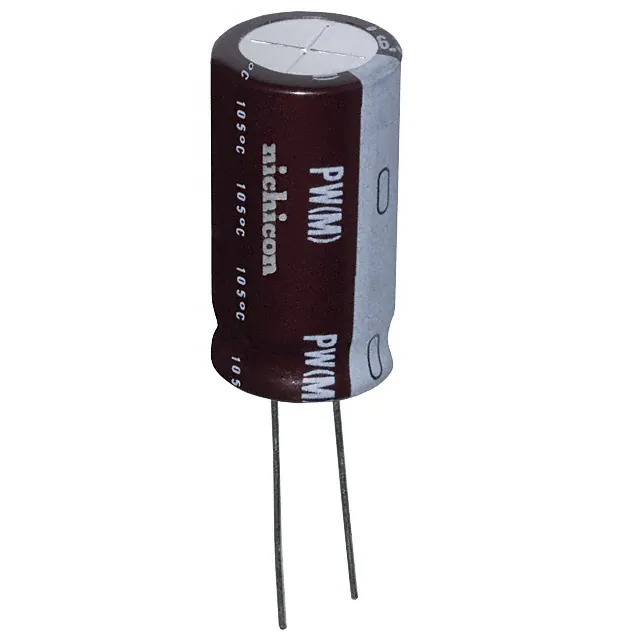

| Part Number | UPW1V222MHH | UPW1V222MHH6 | UPW1V272MHH | UPW1V122MHH | UPW1V222MHD |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Not For New Designs |
| Capacitance | 2200 µF | 2200 µF | 2700 µF | 1200 µF | 2200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V | 35 V | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C | 8000 Hrs @ 105°C | 8000 Hrs @ 105°C | 7000 Hrs @ 105°C | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.559 A @ 120 Hz | 2.329 A @ 120 Hz | 2.678 A @ 120 Hz | 1.964 A @ 120 Hz | 2.559 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.01 A @ 100 kHz | 2.74 A @ 100 kHz | 3.15 A @ 100 kHz | 2.31 A @ 100 kHz | 3.01 A @ 100 kHz |
| Impedance | 18 mOhms | 20 mOhms | 16 mOhms | 25 mOhms | 18 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) | 0.984" (25.00mm) | 1.398" (35.50mm) | 1.240" (31.50mm) | 1.240" (31.50mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
