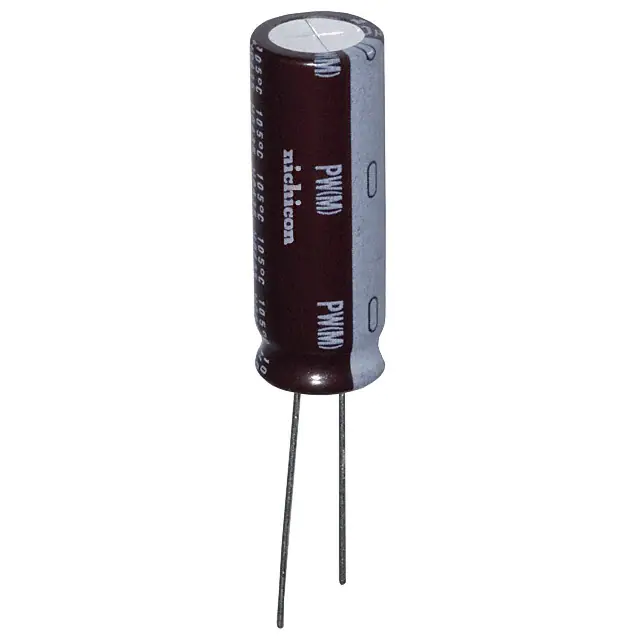

| Part Number | UPW1J681MHH6 | UPW1J181MHH6 | UPW1J681MHD6 | UPW1J681MHH | UPW1J681MHH3 |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Not For New Designs | Obsolete | Obsolete |
| Capacitance | 680 µF | 180 µF | 680 µF | 680 µF | 680 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V | 63 V | 63 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C | 7000 Hrs @ 105°C | 7000 Hrs @ 105°C | 8000 Hrs @ 105°C | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.703 A @ 120 Hz | 663 mA @ 120 Hz | 1.703 A @ 120 Hz | 1.62 A @ 120 Hz | 1.718 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.27 A @ 100 kHz | 1.02 A @ 100 kHz | 2.27 A @ 100 kHz | 2.16 A @ 100 kHz | 2.29 A @ 100 kHz |
| Impedance | 47 mOhms | 150 mOhms | 47 mOhms | 50 mOhms | 55 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) | 0.591" (15.00mm) | 1.398" (35.50mm) | 0.984" (25.00mm) | 0.787" (20.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
