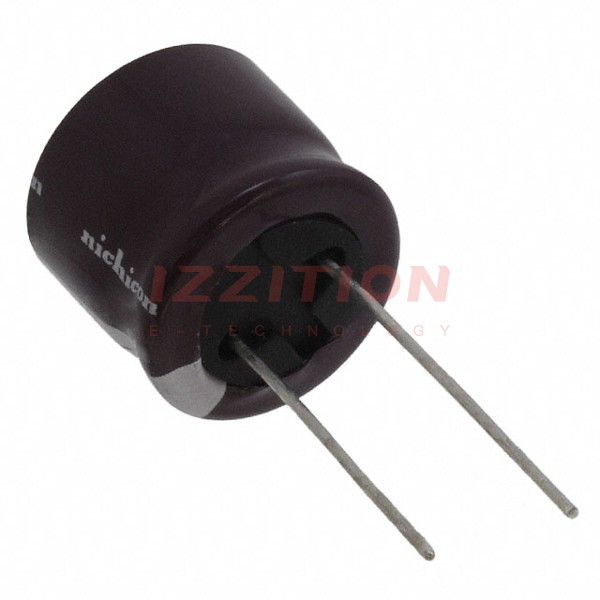

Nichicon-UPW1J391MHD6TN - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	390 µF
Tolerance:	±20%
Voltage - Rated:	63 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	8000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.268 A @ 120 Hz
Ripple Current @ High Frequency:	1.69 A @ 100 kHz
Impedance:	86 mOhms
Lead Spacing:	0.295" (7.50mm)
Size / Dimension:	0.709" Dia (18.00mm)
Height - Seated (Max):	0.650" (16.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon UPW1J391MHD6TN
