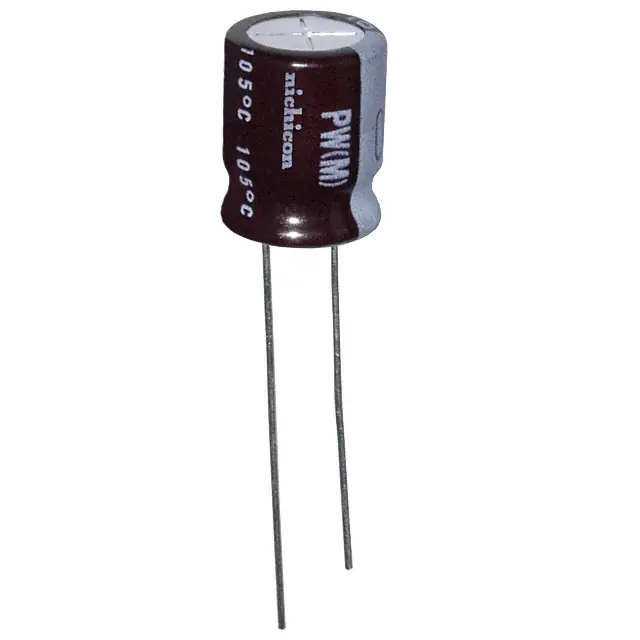

| Part Number | UPW1H151MPD | UPW1H181MPD | UPW1H151MPH | UPW1H101MPD | UPW1H121MPD |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Obsolete | Not For New Designs | Active |
| Capacitance | 150 µF | 180 µF | 150 µF | 100 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 399.75 mA @ 120 Hz | 559 mA @ 120 Hz | 399.75 mA @ 120 Hz | 315.25 mA @ 120 Hz | 412.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 615 mA @ 100 kHz | 860 mA @ 100 kHz | 615 mA @ 100 kHz | 485 mA @ 100 kHz | - |
| Impedance | 155 mOhms | 120 mOhms | 162 mOhms | 234 mOhms | 155 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.787" (20.00mm) | 0.492" (12.50mm) | 0.453" (11.50mm) | 0.591" (15.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
