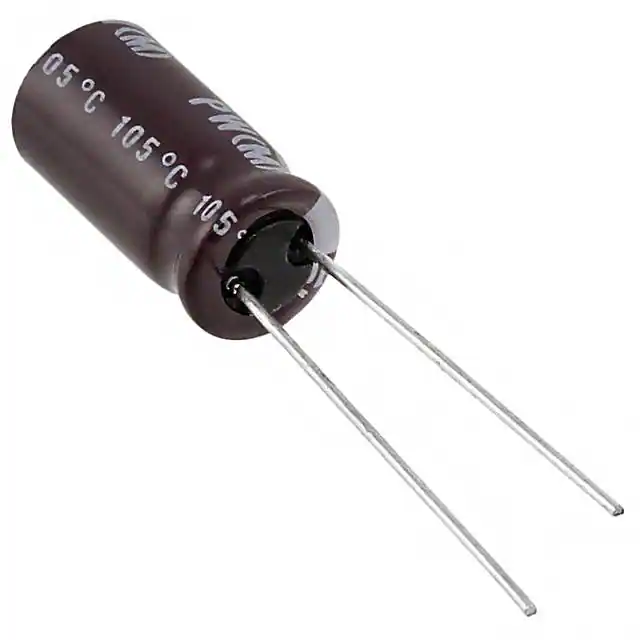

| Part Number | UPW1H121MPD1TD | UPW1H221MPD1TD | UPW1H121MPD6TD | UPW1H181MPD1TD | UPW1H151MPD1TD | UPW1H101MPD1TD | UPW1H121MPD1TA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 120 µF | 220 µF | 120 µF | 180 µF | 150 µF | 100 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 412.75 mA @ 120 Hz | 552.5 mA @ 120 Hz | 403 mA @ 120 Hz | 559 mA @ 120 Hz | 399.75 mA @ 120 Hz | 315.25 mA @ 120 Hz | 412.75 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | 850 mA @ 100 kHz | - | 860 mA @ 100 kHz | 615 mA @ 100 kHz | 485 mA @ 100 kHz | - |
| Impedance | 155 mOhms | 119 mOhms | 162 mOhms | 120 mOhms | 162 mOhms | 234 mOhms | 155 mOhms |
| Lead Spacing | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | 0.689" (17.50mm) | 0.551" (14.00mm) | 0.866" (22.00mm) | 0.551" (14.00mm) | 0.512" (13.00mm) | 0.650" (16.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
