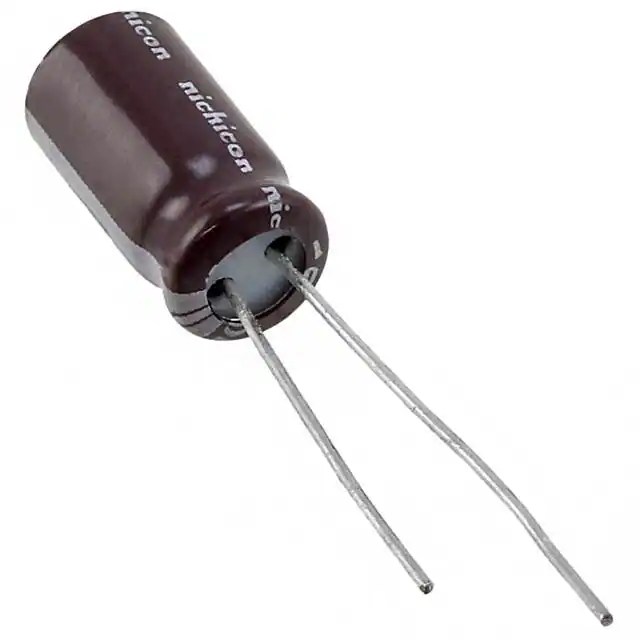

| Part Number | UPV1V390MGD | UPV1H390MGD | UPV1V330MGD |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 39 µF | 39 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 50 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | - | Polar | - |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | - | - | - |
| Ripple Current @ High Frequency | - | - | - |
| Impedance | 700 mOhms | 500 mOhms | 830 mOhms |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
