Please send RFQ , we will respond immediately.

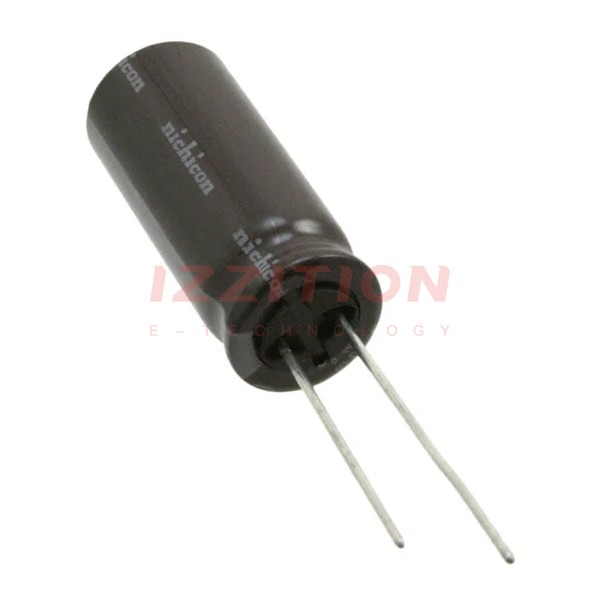

| Part Number | UPT2P101MHD | UPT2P151MHD | UPT2W101MHD | UPT2P121MHD | UPT2P181MHD | UPT2D101MHD | UPT2E101MHD | UPT2G101MHD |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 100 µF | 150 µF | 100 µF | 120 µF | 180 µF | 100 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 220 V | 220 V | 450 V | 220 V | 220 V | 200 V | 250 V | 400 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | - | Polar | - | Polar | Polar | - | Polar | - |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 430 mA @ 120 Hz | 580 mA @ 120 Hz | 650 mA @ 120 Hz | 490 mA @ 120 Hz | 670 mA @ 120 Hz | 480 mA @ 120 Hz | 460 mA @ 120 Hz | 580 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | 928 mA @ 10 kHz | 1.04 A @ 10 kHz | 784 mA @ 10 kHz | 1.072 A @ 10 kHz | 768 mA @ 10 kHz | - | 928 mA @ 10 kHz |
| Impedance | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) | 1.634" (41.50mm) | 1.634" (41.50mm) | 1.457" (37.00mm) | 1.299" (33.00mm) | 1.299" (33.00mm) | 1.457" (37.00mm) | 1.457" (37.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
