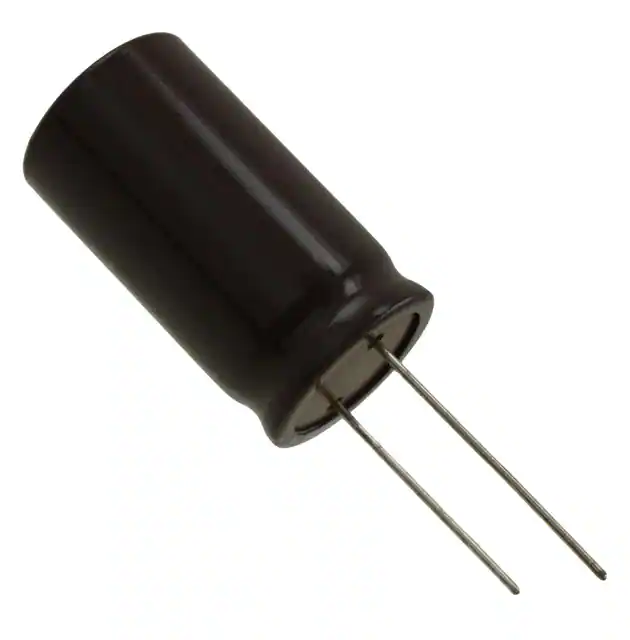

| Part Number | UPT2G181MRD | UPT2W181MRD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 180 µF | 180 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 400 V | 450 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | - |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 850 mA @ 120 Hz | 1.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.36 A @ 10 kHz | 1.76 A @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 0.394" (10.00mm) | 0.492" (12.50mm) |
| Size / Dimension | 0.866" Dia (22.00mm) | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) | 2.047" (52.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
