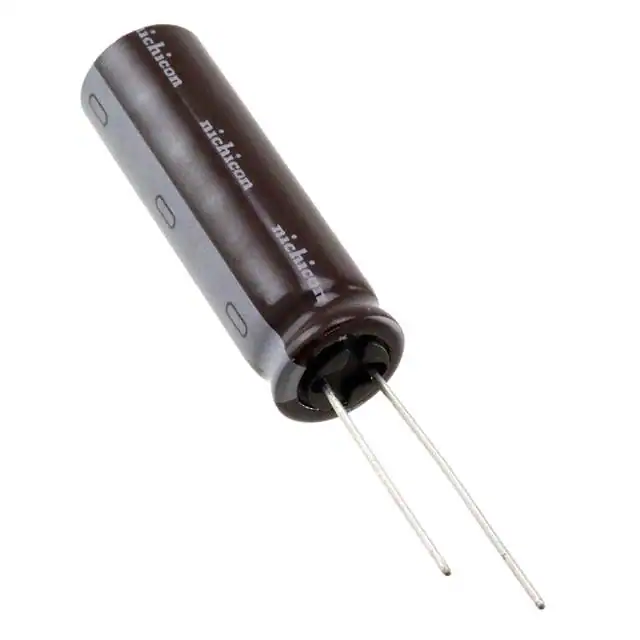

| Part Number | UPT2E121MHD | UPT2E221MHD | UPT2G121MHD | UPT2E181MHD | UPT2E151MHD | UPT2P121MHD | UPT2D121MHD | UPT2E101MHD |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 120 µF | 220 µF | 120 µF | 180 µF | 150 µF | 120 µF | 120 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 250 V | 250 V | 400 V | 250 V | 250 V | 220 V | 200 V | 250 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | - | Polar | - | Polar | - | Polar | - | Polar |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 530 mA @ 120 Hz | 830 mA @ 120 Hz | 660 mA @ 120 Hz | 720 mA @ 120 Hz | 620 mA @ 120 Hz | 490 mA @ 120 Hz | 530 mA @ 120 Hz | 460 mA @ 120 Hz |
| Ripple Current @ High Frequency | 848 mA @ 10 kHz | 1.328 A @ 10 kHz | 1.056 A @ 10 kHz | 1.152 A @ 10 kHz | 992 mA @ 10 kHz | 784 mA @ 10 kHz | 848 mA @ 10 kHz | - |
| Impedance | - | - | - | - | - | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.634" (41.50mm) | 1.634" (41.50mm) | 1.634" (41.50mm) | 1.457" (37.00mm) | 1.299" (33.00mm) | 1.457" (37.00mm) | 1.240" (31.50mm) | 1.457" (37.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
