Nichicon-UPS2W4R7MHD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	4.7 µF
Tolerance:	±20%
Voltage - Rated:	450 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	3000 Hrs @ 105°C
Operating Temperature:	-25°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	49 mA @ 120 Hz
Ripple Current @ High Frequency:	78.4 mA @ 10 kHz
Impedance:	-
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	0.866" (22.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

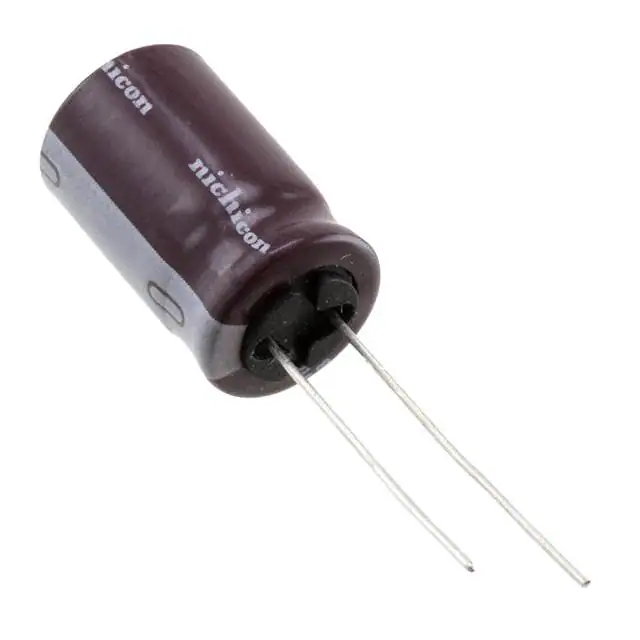

Nichicon UPS2W4R7MHD
