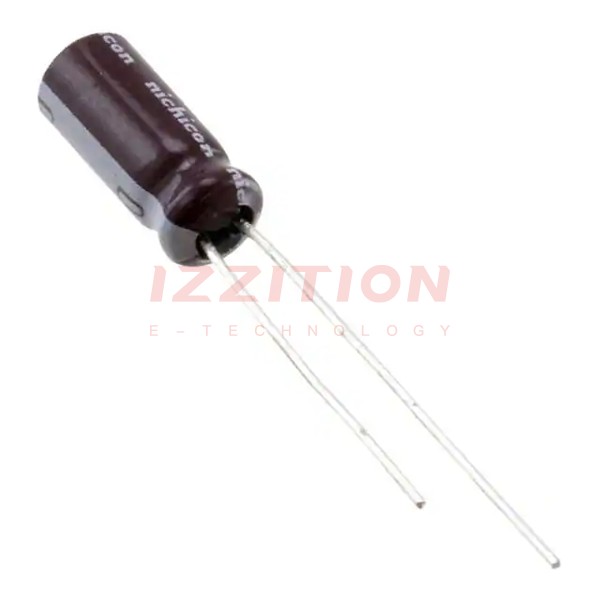

| Part Number | UPS1J100MDD1TA | UPS1J100MDD1TD | UPS1V100MDD1TA | UPS1E100MDD1TA | UPS1H100MDD1TA |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 63 V | 35 V | 25 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 18.7 mA @ 120 Hz | 18.7 mA @ 120 Hz | 27.2 mA @ 120 Hz | 80 mA @ 120 Hz | 20.4 mA @ 120 Hz |
| Ripple Current @ High Frequency | 110 mA @ 100 kHz | 110 mA @ 100 kHz | 160 mA @ 100 kHz | 160 mA @ 100 kHz | 120 mA @ 100 kHz |
| Impedance | 2.1 Ohms | 2.1 Ohms | 1.5 Ohms | 1.5 Ohms | 2.1 Ohms |
| Lead Spacing | 0.197" (5.00mm) | 0.098" (2.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
