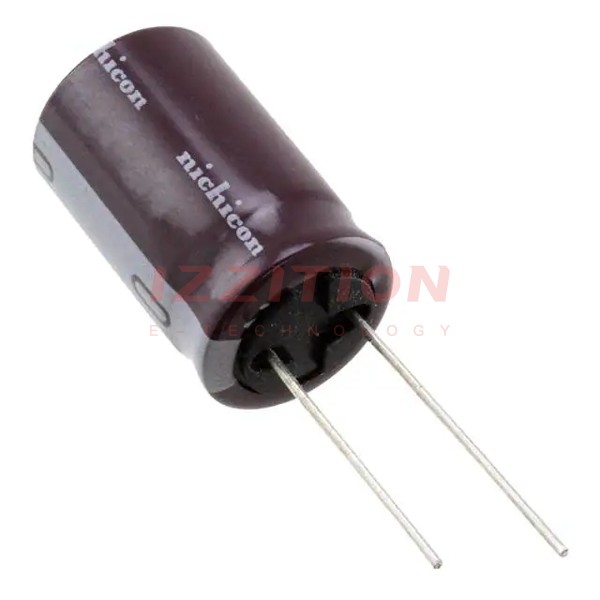

Nichicon-UPS1A472MHD1TN - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	4700 µF
Tolerance:	±20%
Voltage - Rated:	10 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	3000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.653 A @ 120 Hz
Ripple Current @ High Frequency:	1.9 A @ 100 kHz
Impedance:	38 mOhms
Lead Spacing:	0.295" (7.50mm)
Size / Dimension:	0.630" Dia (16.00mm)
Height - Seated (Max):	1.063" (27.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon UPS1A472MHD1TN
