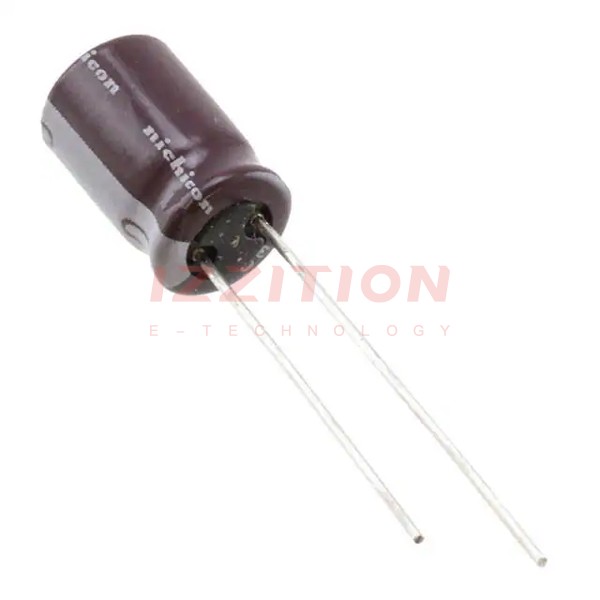

Nichicon-UPS0J471MPD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	470 µF
Tolerance:	±20%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	291.1 mA @ 120 Hz
Ripple Current @ High Frequency:	410 mA @ 100 kHz
Impedance:	280 mOhms
Lead Spacing:	0.138" (3.50mm)
Size / Dimension:	0.315" Dia (8.00mm)
Height - Seated (Max):	0.512" (13.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon UPS0J471MPD
