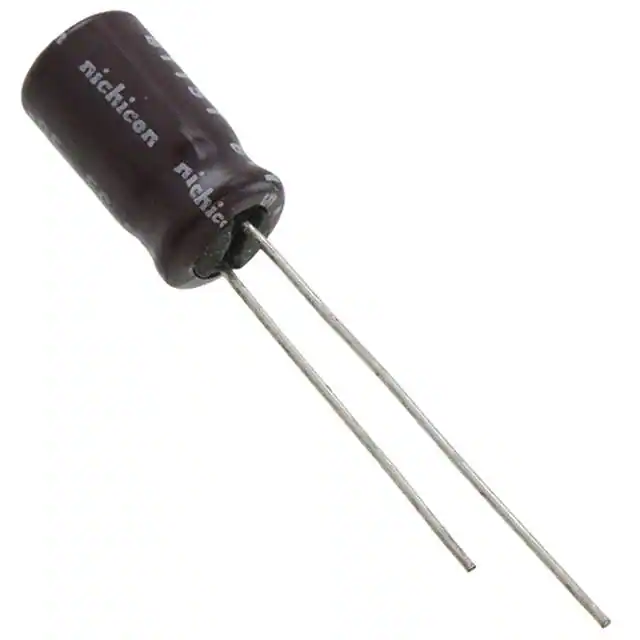

Nichicon-UPM2A4R7MED - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	4.7 µF
Tolerance:	±20%
Voltage - Rated:	100 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	34 mA @ 120 Hz
Ripple Current @ High Frequency:	-
Impedance:	2.8 Ohms
Lead Spacing:	0.098" (2.50mm)
Size / Dimension:	0.248" Dia (6.30mm)
Height - Seated (Max):	0.492" (12.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon UPM2A4R7MED
