Please send RFQ , we will respond immediately.

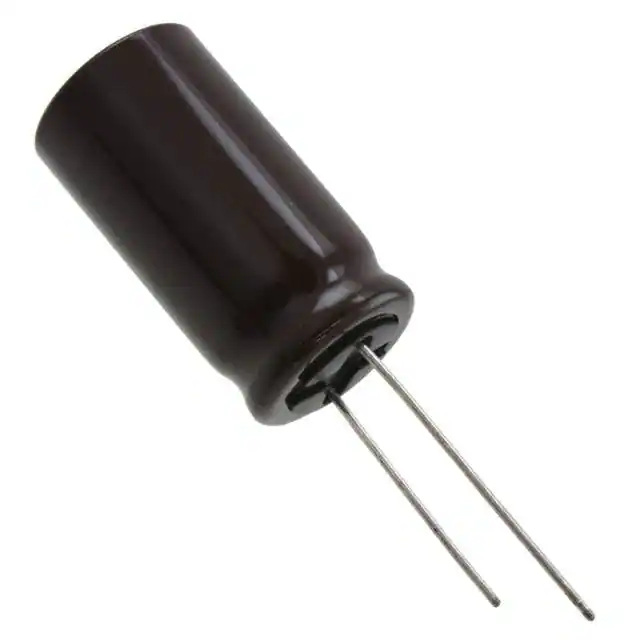

| Part Number | UPM1E272MHD | UPM1E472MHD | UPM1E272MHD6 | UPM1C272MHD | UPM1E222MHD |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 2700 µF | 4700 µF | 2700 µF | 2700 µF | 2200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.25 A @ 120 Hz | 2.97 A @ 120 Hz | 2.11 A @ 120 Hz | 2 A @ 120 Hz | 2.21 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.51 A @ 10 kHz | 3.3 A @ 10 kHz | 2.35 A @ 10 kHz | 2.23 A @ 10 kHz | 2.46 A @ 10 kHz |
| Impedance | 22 mOhms | 18 mOhms | 25 mOhms | 25 mOhms | 24 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.319" (33.50mm) | 1.654" (42.00mm) | 1.063" (27.00mm) | 1.476" (37.50mm) | 1.654" (42.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
