UPM1A182MHD1TO
  • Share:

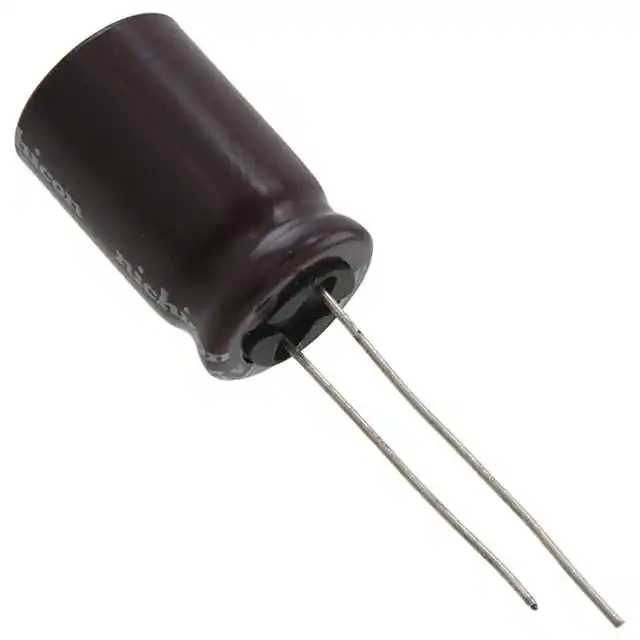

Nichicon UPM1A182MHD1TO

Manufacturer No:
UPM1A182MHD1TO
Manufacturer:
Nichicon
Package:
Cut Tape (CT)
Datasheet:
UPM1A182MHD1TO Datasheet
ECAD Model:
-
Description:
CAP ALUM 1800UF 20% 10V RADIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:1800 µF
Tolerance:±20%
Voltage - Rated:10 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:5000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:1.32 A @ 120 Hz
Ripple Current @ High Frequency:1.47 A @ 10 kHz
Impedance:39 mOhms
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.492" Dia (12.50mm)
Height - Seated (Max):0.866" (22.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$1.14
822

Please send RFQ , we will respond immediately.
