UPJ2A470MHD6TO
  • Share:

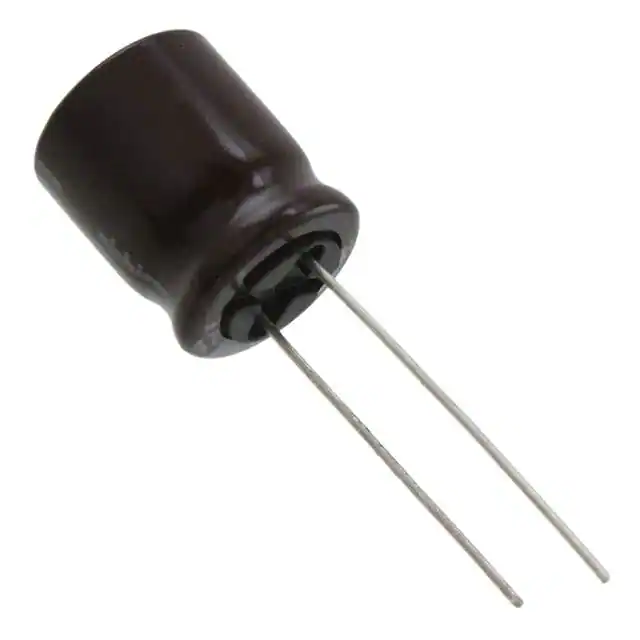

Nichicon UPJ2A470MHD6TO

Manufacturer No:
UPJ2A470MHD6TO
Manufacturer:
Nichicon
Package:
Cut Tape (CT)
Datasheet:
UPJ2A470MHD6TO Datasheet
ECAD Model:
-
Description:
CAP ALUM 47UF 20% 100V RADIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:47 µF
Tolerance:±20%
Voltage - Rated:100 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:5000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:239 mA @ 120 Hz
Ripple Current @ High Frequency:402 mA @ 10 kHz
Impedance:310 mOhms
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.492" Dia (12.50mm)
Height - Seated (Max):0.650" (16.50mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$0.99
337

Please send RFQ , we will respond immediately.
