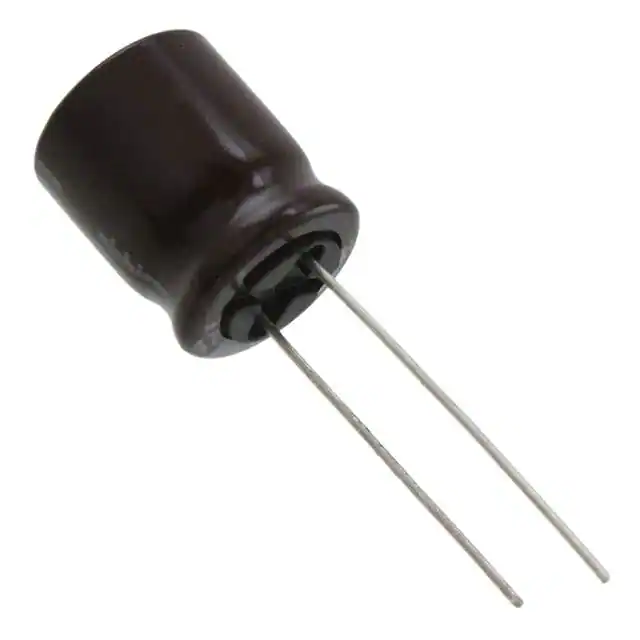

| Part Number | UPJ1V391MHD6TO | UPJ1V331MHD6TO |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 390 µF | 330 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 825 mA @ 120 Hz | 780 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.06 A @ 10 kHz | 1.02 A @ 10 kHz |
| Impedance | 96 mOhms | 100 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | 0.650" (16.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
