Please send RFQ , we will respond immediately.

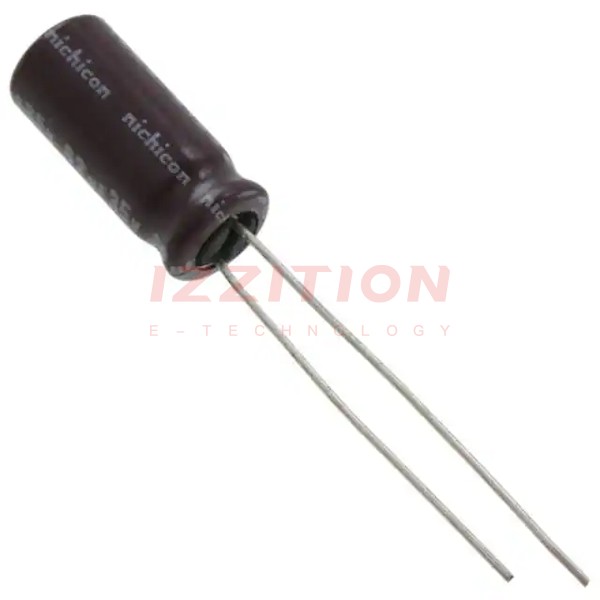

| Part Number | UPJ1H470MED | UPJ1H270MED |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 47 µF | 27 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz | 115 mA @ 120 Hz |
| Ripple Current @ High Frequency | 330 mA @ 10 kHz | 215 mA @ 10 kHz |
| Impedance | 420 mOhms | 740 mOhms |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.630" (16.00mm) | 0.472" (12.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
