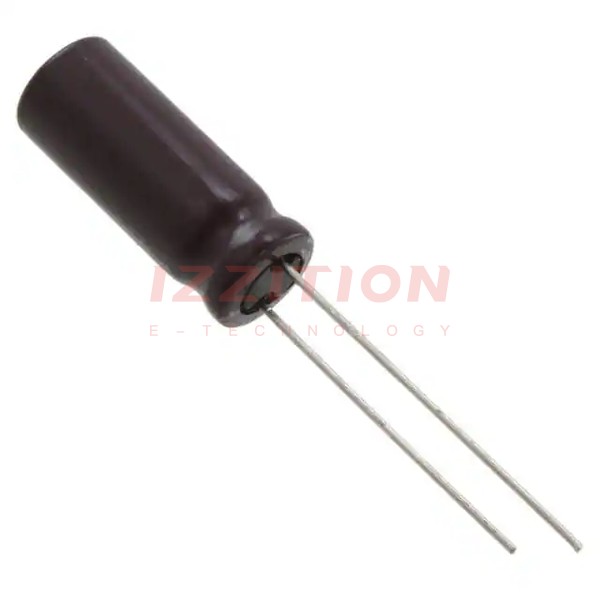

| Part Number | UPJ1H121MPD1TD | UPJ1H181MPD1TD | UPJ1H221MPD1TD | UPJ1H151MPD1TD | UPJ1H121MPD6TD | UPJ1H101MPD1TD | UPJ1H121MPD1TA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 120 µF | 180 µF | 220 µF | 150 µF | 120 µF | 100 µF | 120 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 3000 Hrs @ 105°C | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 455 mA @ 120 Hz | 635 mA @ 120 Hz | 760 mA @ 120 Hz | 570 mA @ 120 Hz | 435 mA @ 120 Hz | 410 mA @ 120 Hz | 455 mA @ 120 Hz |
| Ripple Current @ High Frequency | - | 890 mA @ 10 kHz | 1.04 A @ 10 kHz | 820 mA @ 10 kHz | - | - | - |
| Impedance | 160 mOhms | 110 mOhms | 98 mOhms | 130 mOhms | 170 mOhms | 180 mOhms | 160 mOhms |
| Lead Spacing | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) | 0.846" (21.50mm) | 1.063" (27.00mm) | 0.866" (22.00mm) | 0.650" (16.50mm) | 0.866" (22.00mm) | 0.827" (21.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
