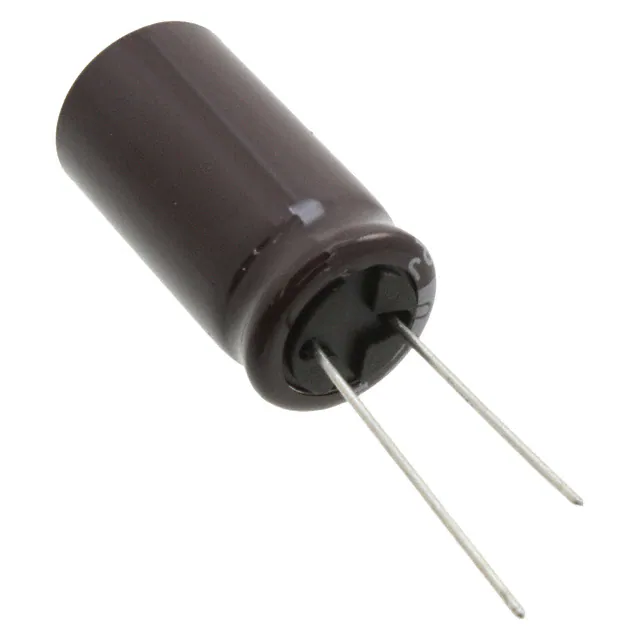

| Part Number | UPJ1E272MHD | UPJ1E472MHD | UPJ1E272MHD6 | UPJ1C272MHD | UPJ1E222MHD |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 2700 µF | 4700 µF | 2700 µF | 2700 µF | 2200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 25 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 2.22 A @ 120 Hz | 2.66 A @ 120 Hz | 2.06 A @ 120 Hz | 1.99 A @ 120 Hz | 2.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.47 A @ 10 kHz | 2.96 A @ 10 kHz | 2.29 A @ 10 kHz | 2.22 A @ 10 kHz | 2.36 A @ 10 kHz |
| Impedance | 27 mOhms | 22 mOhms | 34 mOhms | 31 mOhms | 29 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.299" (33.00mm) | 1.634" (41.50mm) | 1.043" (26.50mm) | 1.457" (37.00mm) | 1.634" (41.50mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
