Please send RFQ , we will respond immediately.

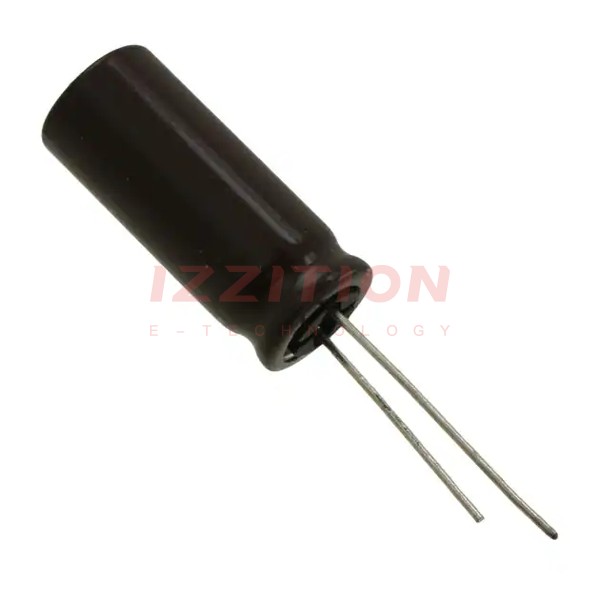

| Part Number | UPJ1C222MHD | UPJ1C222MHD6 | UPJ1E222MHD | UPJ1C822MHD | UPJ1C272MHD | UPJ1A222MHD | UPJ1C122MHD |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 2200 µF | 2200 µF | 2200 µF | 8200 µF | 2700 µF | 2200 µF | 1200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 25 V | 16 V | 16 V | 10 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz | 1.62 A @ 120 Hz | 2.12 A @ 120 Hz | 2.73 A @ 120 Hz | 1.99 A @ 120 Hz | 1.53 A @ 120 Hz | 1.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.01 A @ 10 kHz | 1.8 A @ 10 kHz | 2.36 A @ 10 kHz | 3.04 A @ 10 kHz | 2.22 A @ 10 kHz | 1.71 A @ 10 kHz | 1.43 A @ 10 kHz |
| Impedance | 34 mOhms | 48 mOhms | 29 mOhms | 21 mOhms | 31 mOhms | 45 mOhms | 60 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.299" (33.00mm) | 0.846" (21.50mm) | 1.634" (41.50mm) | 1.634" (41.50mm) | 1.457" (37.00mm) | 1.043" (26.50mm) | 0.846" (21.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
