Please send RFQ , we will respond immediately.

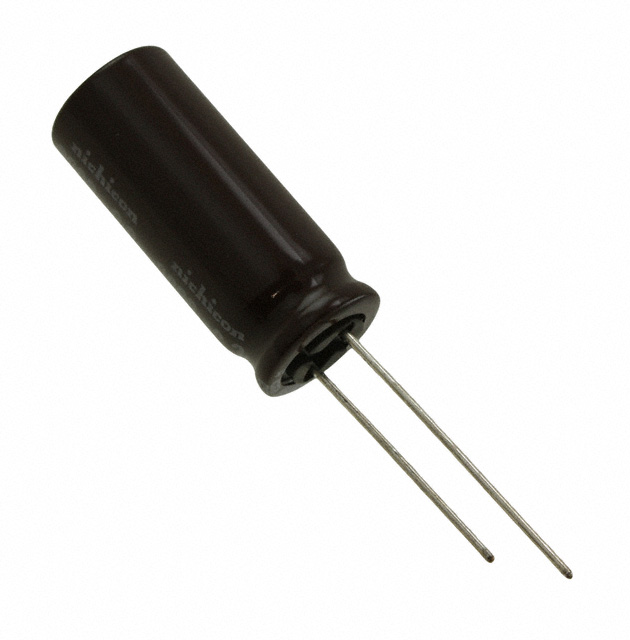

| Part Number | UPJ0J392MHD | UPJ0J392MHD6 | UPJ0J332MHD |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 3900 µF | 3900 µF | 3300 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.71 A @ 120 Hz | 1.54 A @ 120 Hz | 1.53 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.91 A @ 10 kHz | 1.72 A @ 10 kHz | 1.71 A @ 10 kHz |
| Impedance | 37 mOhms | 56 mOhms | 45 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.299" (33.00mm) | 0.846" (21.50mm) | 1.043" (26.50mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
