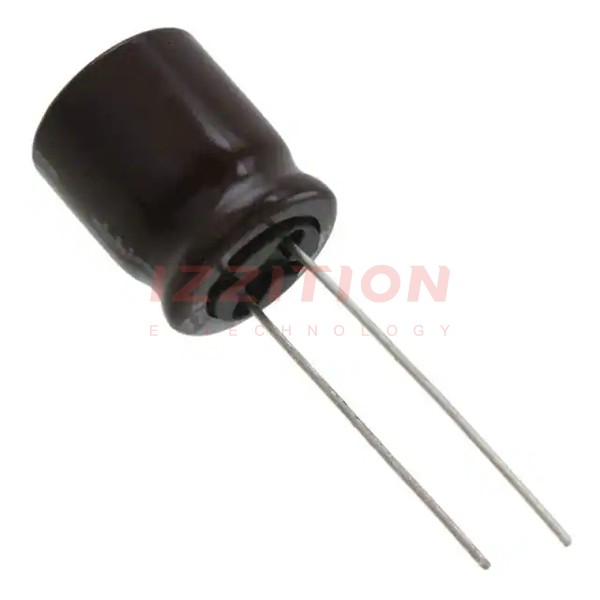

| Part Number | UPJ0J122MHD6 | UPJ0J822MHD6 | UPJ0J152MHD6 | UPJ0J182MHD6 | UPJ0J222MHD6 | UPJ0J102MHD6 |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 1200 µF | 8200 µF | 1500 µF | 1800 µF | 2200 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 835 mA @ 120 Hz | 2.15 A @ 120 Hz | 915 mA @ 120 Hz | 1.14 A @ 120 Hz | 1.2 A @ 120 Hz | 765 mA @ 120 Hz |
| Ripple Current @ High Frequency | 950 mA @ 10 kHz | 2.39 A @ 10 kHz | 1.02 A @ 10 kHz | 1.27 A @ 10 kHz | 1.34 A @ 10 kHz | 890 mA @ 10 kHz |
| Impedance | 120 mOhms | 31 mOhms | 100 mOhms | 84 mOhms | 78 mOhms | 130 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.709" Dia (18.00mm) | 0.492" Dia (12.50mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) | 1.299" (33.00mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.650" (16.50mm) | 0.630" (16.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
