Nichicon-UPB1E101MED1TD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	100 µF
Tolerance:	±20%
Voltage - Rated:	25 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	95 mA @ 120 Hz
Ripple Current @ High Frequency:	123.5 mA @ 100 kHz
Impedance:	-
Lead Spacing:	0.098" (2.50mm)
Size / Dimension:	0.248" Dia (6.30mm)
Height - Seated (Max):	0.492" (12.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

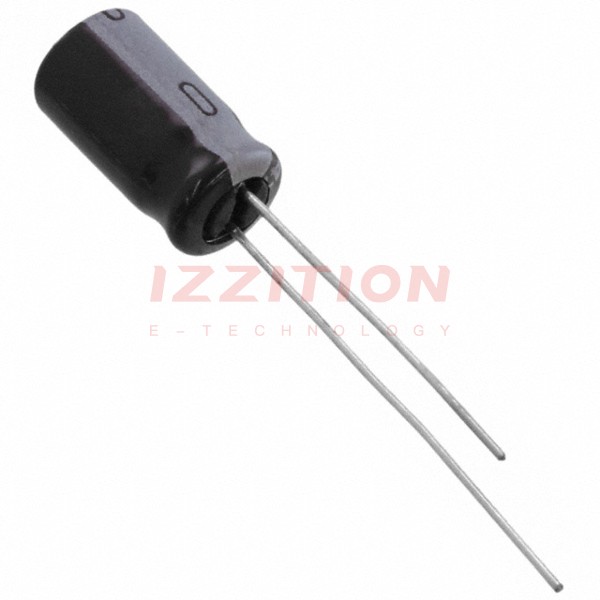

Nichicon UPB1E101MED1TD
