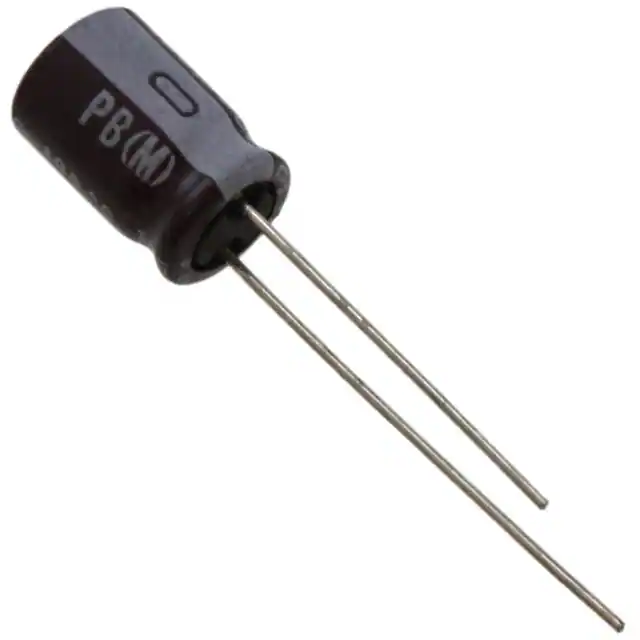

| Part Number | UPB1A471MPD1TD | UPB1C471MPD1TD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete |
| Capacitance | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 10 V | 16 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz | 270 mA @ 120 Hz |
| Ripple Current @ High Frequency | 234 mA @ 100 kHz | 351 mA @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.138" (3.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.551" (14.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
