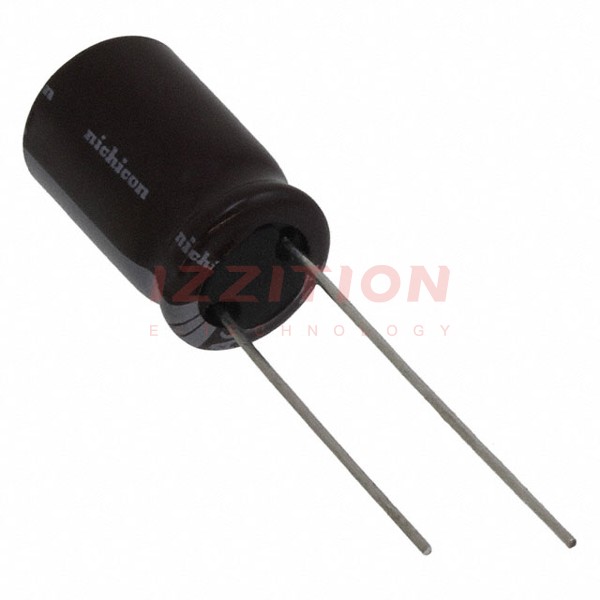

| Part Number | UPA0J122MPD6TD | UPA0J152MPD6TD | UPA0J222MPD6TD | UPA0J102MPD6TD | UPA0J122MPD1TD | UPA0J122MPD3TD |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 1200 µF | 1500 µF | 2200 µF | 1000 µF | 1200 µF | 1200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | - | 4000 Hrs @ 105°C | - | 4000 Hrs @ 105°C | 4000 Hrs @ 105°C | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | - | 1.054 A @ 120 Hz | - | 675 mA @ 120 Hz | 765 mA @ 120 Hz | 1.054 A @ 120 Hz |
| Ripple Current @ High Frequency | - | 1.24 A @ 100 kHz | - | 900 mA @ 100 kHz | 900 mA @ 100 kHz | 1.24 A @ 100 kHz |
| Impedance | - | 49 mOhms | - | 63 mOhms | 63 mOhms | 49 mOhms |
| Lead Spacing | - | 0.197" (5.00mm) | - | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | - | 0.394" Dia (10.00mm) | - | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | - | 0.689" (17.50mm) | - | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.551" (14.00mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
