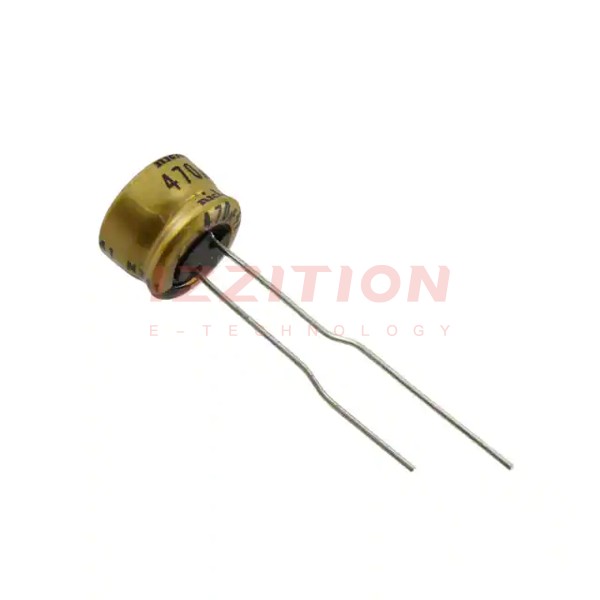

| Part Number | UMW0J331MDD1TE | UMW0J331MDD1TP | UMW0G331MDD1TE | UMW0J330MDD1TE |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active |
| Capacitance | 330 µF | 330 µF | 330 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 4 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | Audio | Audio | Audio | Audio |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz | 170 mA @ 120 Hz | 145 mA @ 120 Hz | 37 mA @ 120 Hz |
| Ripple Current @ High Frequency | 255 mA @ 10 kHz | 255 mA @ 10 kHz | 217.5 mA @ 10 kHz | 55.5 mA @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
