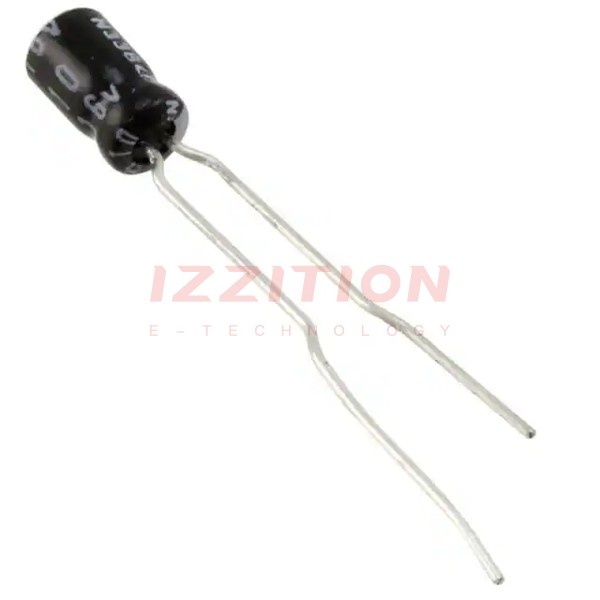

| Part Number | UMT1V2R2MCD2TP | UMT1H2R2MCD2TP |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete |
| Capacitance | 2.2 µF | 2.2 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 35 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 7.5 mA @ 120 Hz | 9 mA @ 120 Hz |
| Ripple Current @ High Frequency | 11.25 mA @ 10 kHz | 13.5 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Size / Dimension | 0.118" Dia (3.00mm) | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
