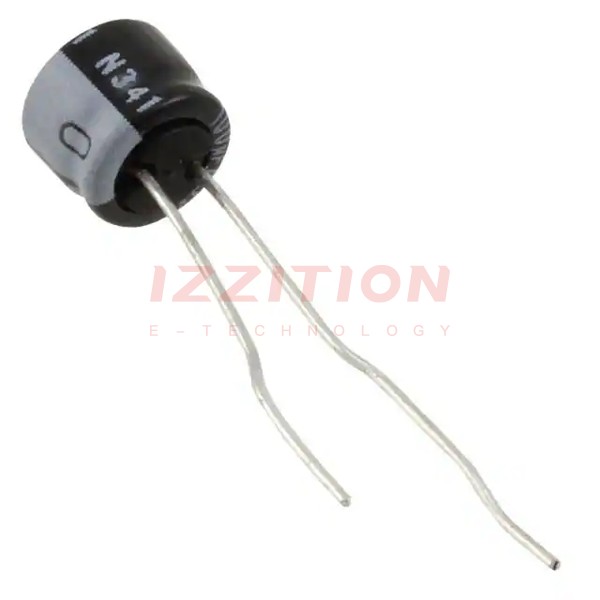

| Part Number | UMT1E330MDD1TP | UMT1A330MDD1TP | UMT1C330MDD1TP | UMT1E330MDD1TE |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 33 µF | 33 µF | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 10 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 48 mA @ 120 Hz | 35 mA @ 120 Hz | 40 mA @ 120 Hz | - |
| Ripple Current @ High Frequency | - | - | - | - |
| Impedance | - | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.197" Dia (5.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
