UMT0G101MDD1TE
  • Share:

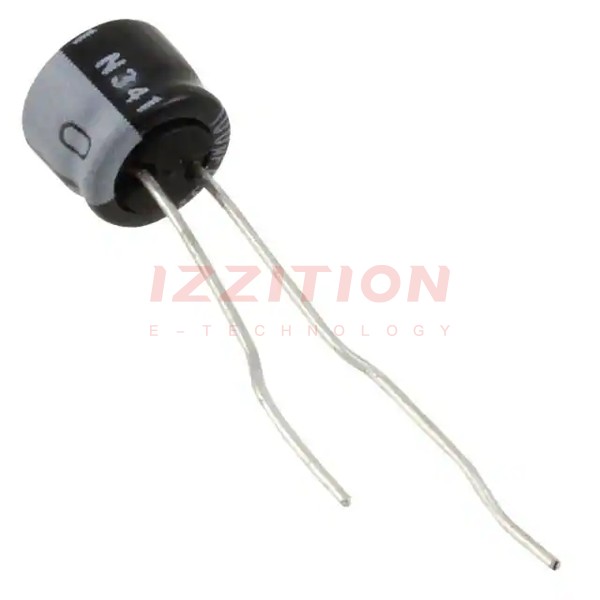

Nichicon UMT0G101MDD1TE

Manufacturer No:
UMT0G101MDD1TE
Manufacturer:
Nichicon
Package:
Tape & Box (TB)
Datasheet:
UMT0G101MDD1TE Datasheet
ECAD Model:
-
Description:
CAP ALUM 100UF 20% 4V RADIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:100 µF
Tolerance:±20%
Voltage - Rated:4 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:1000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:60 mA @ 120 Hz
Ripple Current @ High Frequency:90 mA @ 10 kHz
Impedance:-
Lead Spacing:0.098" (2.50mm)
Size / Dimension:0.248" Dia (6.30mm)
Height - Seated (Max):0.236" (6.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

-
498

Please send RFQ , we will respond immediately.

Similar Products

Part Number UMT0G101MDD1TE UMT0G101MDD1TP   UMT0J101MDD1TE
Manufacturer Nichicon Nichicon Nichicon
Product Status Obsolete Obsolete Obsolete
Capacitance 100 µF 100 µF 100 µF
Tolerance ±20% ±20% ±20%
Voltage - Rated 4 V 4 V 6.3 V
ESR (Equivalent Series Resistance) - - -
Lifetime @ Temp. 1000 Hrs @ 105°C 1000 Hrs @ 105°C 1000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Polarization Polar Polar Polar
Ratings - - -
Applications General Purpose General Purpose General Purpose
Ripple Current @ Low Frequency 60 mA @ 120 Hz 60 mA @ 120 Hz 60 mA @ 120 Hz
Ripple Current @ High Frequency 90 mA @ 10 kHz 90 mA @ 10 kHz 90 mA @ 10 kHz
Impedance - - -
Lead Spacing 0.098" (2.50mm) 0.098" (2.50mm) 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm) 0.248" Dia (6.30mm) 0.248" Dia (6.30mm)
Height - Seated (Max) 0.236" (6.00mm) 0.236" (6.00mm) 0.236" (6.00mm)
Surface Mount Land Size - - -
Mounting Type Through Hole Through Hole Through Hole
Package / Case Radial, Can Radial, Can Radial, Can
