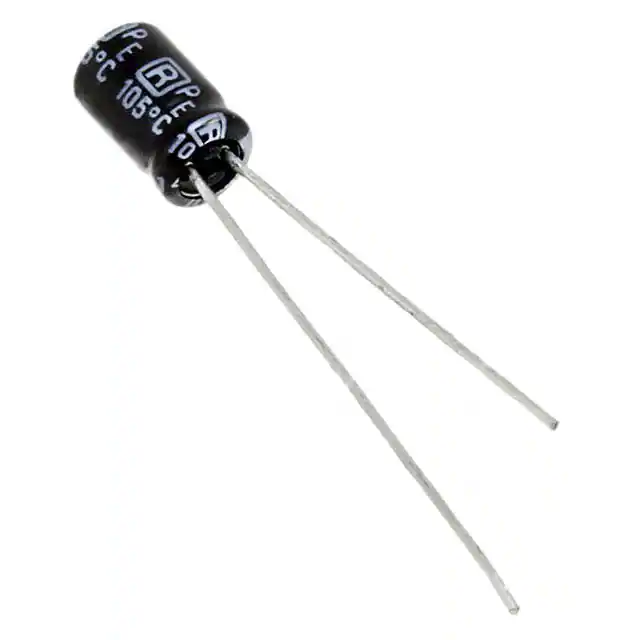

| Part Number | UML1H2R2MDD | UMP1H2R2MDD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Obsolete |
| Capacitance | 2.2 µF | 2.2 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Bi-Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 8.4 mA @ 120 Hz | 13 mA @ 120 Hz |
| Ripple Current @ High Frequency | 19.5 mA @ 10 kHz | 19.5 mA @ 10 kHz |
| Impedance | - | - |
| Lead Spacing | 0.059" (1.50mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
