Please send RFQ , we will respond immediately.

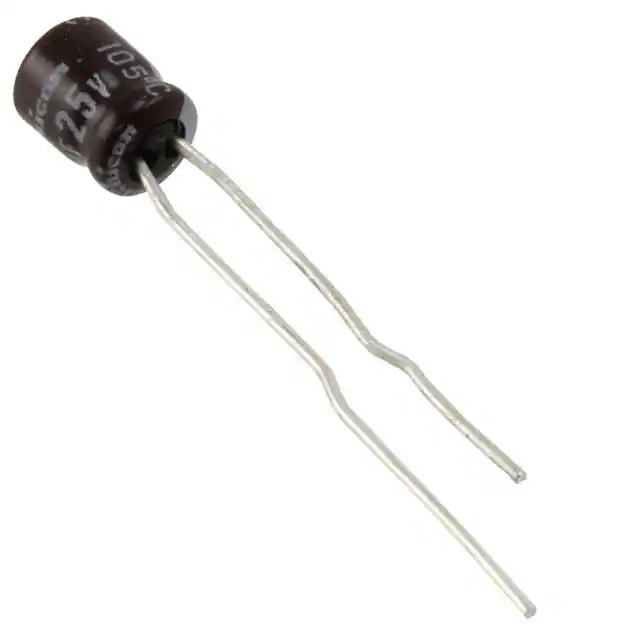

| Part Number | UMF1E6R8MDD1TE | UMF1E6R8MDD1TP | UMF1V6R8MDD1TE |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 6.8 µF | 6.8 µF | 6.8 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz | 25 mA @ 120 Hz | - |
| Ripple Current @ High Frequency | 50 mA @ 100 kHz | 50 mA @ 100 kHz | - |
| Impedance | 5 Ohms | 5 Ohms | 2.6 Ohms |
| Lead Spacing | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
