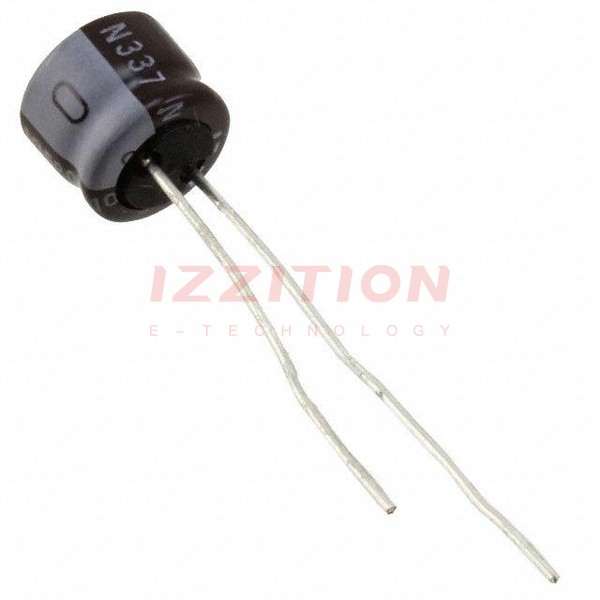

| Part Number | UMF0J101MDD | UML0J101MDD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Obsolete | Active |
| Capacitance | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | 1000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 105°C | -40°C ~ 85°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 57.5 mA @ 120 Hz | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 115 mA @ 100 kHz | 105 mA @ 10 kHz |
| Impedance | 1.3 Ohms | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
