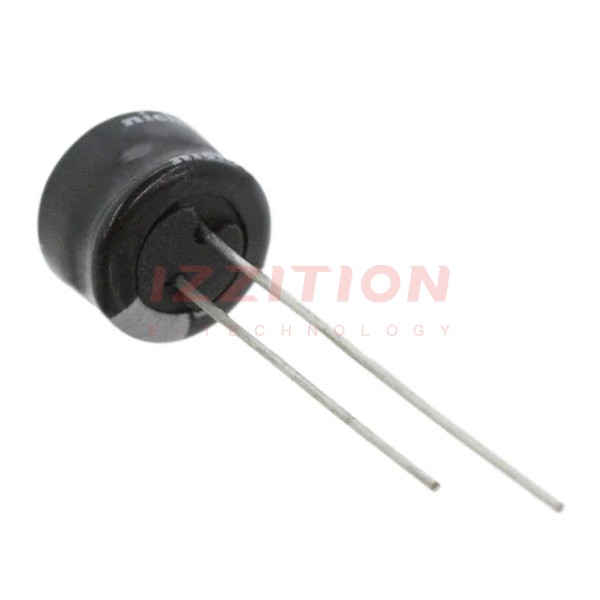

| Part Number | UMA0J221MDD1TE | UMA0J221MDD1TP | UMA0G221MDD1TE | UMA0J220MDD1TE |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 220 µF | 220 µF | 220 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 4 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz | 110 mA @ 120 Hz | 96 mA @ 120 Hz | 28 mA @ 120 Hz |
| Ripple Current @ High Frequency | 165 mA @ 10 kHz | 165 mA @ 10 kHz | 144 mA @ 10 kHz | 42 mA @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.059" (1.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
