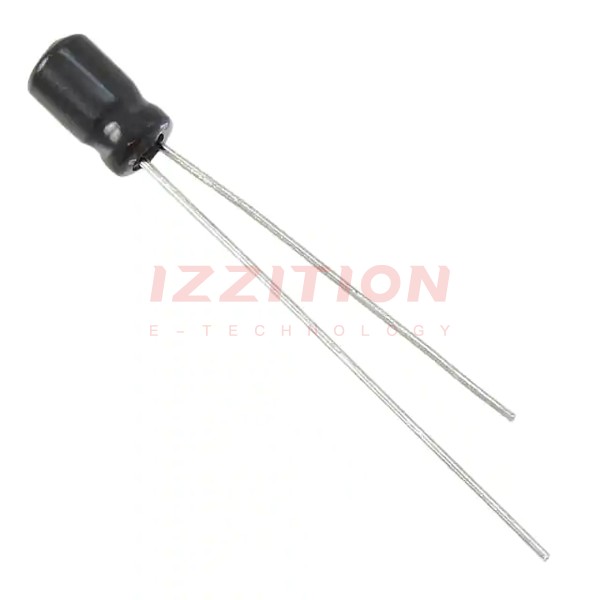

Nichicon-UMA0G220MCD2 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	22 µF
Tolerance:	±20%
Voltage - Rated:	4 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	19 mA @ 120 Hz
Ripple Current @ High Frequency:	28.5 mA @ 10 kHz
Impedance:	-
Lead Spacing:	0.039" (1.00mm)
Size / Dimension:	0.118" Dia (3.00mm)
Height - Seated (Max):	0.236" (6.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon UMA0G220MCD2
