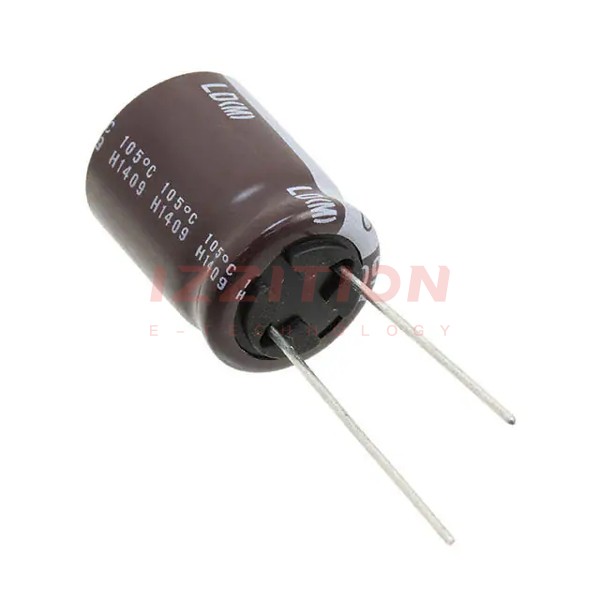

| Part Number | ULD2W270MHD1TN | ULD2W470MHD1TN |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 27 µF | 47 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 450 V | 450 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C | 20000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 305 mA @ 120 Hz | 480 mA @ 120 Hz |
| Ripple Current @ High Frequency | 549 mA @ 100 kHz | 864 mA @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 1.063" (27.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
